Foliage Actor

The FoliagePluginActor is the Actor that replaces a foliage instance. Create a Blueprint subclass of it and set it as Foliage Actor Class in the Data Table.

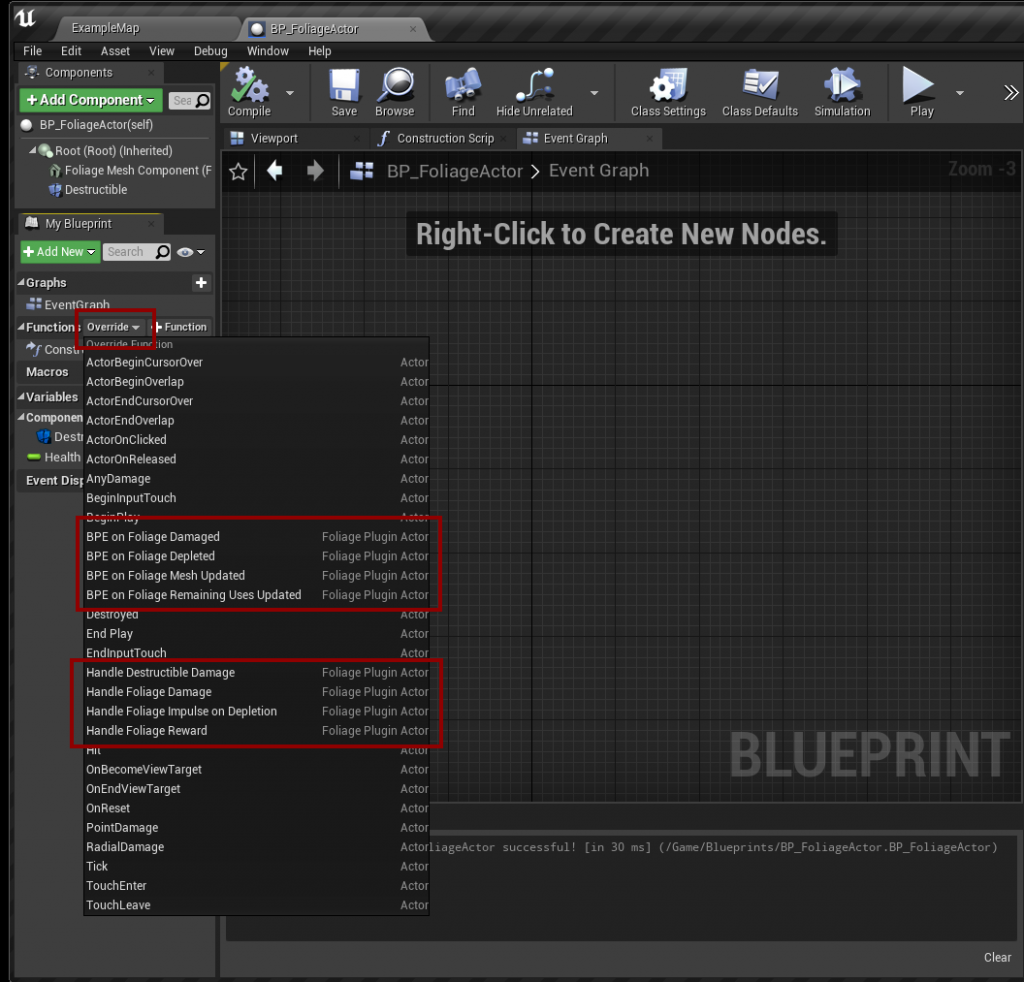

Its events and functions are listed under Override in the My Blueprint panel:

Components

Component	Description
Root	Scene root.
Foliage Mesh	Static mesh component. The plugin sets it to the instance's mesh.

Add a Geometry Collection Component (UE5) or Destructible Component (UE4) yourself if you use destructible meshes.

Events

Event	Runs on	Called when
BPE On Foliage Damaged	Server	The actor was harvested. Receives the damage, instigator, causer, damage type and rewards.
BPE On Foliage Remaining Uses Updated	Server and clients	The remaining uses changed.
BPE On Foliage Mesh Updated	Server and clients	The mesh was set, right after the actor was spawned.
BPE On Foliage Depleted	Server and clients	The remaining uses reached 0. Called once.

The same events are also available as the bindable delegates On Foliage Remaining Uses Updated, On Foliage Mesh Updated and On Foliage Depleted, for example to listen from a widget.

Overridable functions

Function	Default behavior	Override to
Handle Foliage Damage	Checks the damage type, gives the reward, reduces the remaining uses and breaks the destructible mesh.	Change when a hit counts, for example with health. Call the parent to keep the default behavior.
Handle Foliage Reward	Calls On Foliage Harvested on the Instigator and the Damage Causer. Returns false if neither implements the interface.	Give rewards in your own way. If you override it, call On Foliage Harvested yourself if you still want the interface to be used.
Handle Destructible Damage	Breaks the destructible mesh at the hit location. Runs on server and clients.	Break the mesh in your own way.
Handle Foliage Impulse on Depletion	Pushes the mesh near its top in a random direction, scaled by its mass and Physics Impulse Multiplier.	Make it fall in a specific direction, for example away from the player.

Handle Foliage Damage and Handle Foliage Reward only run on the server.

Functions

Function	Description
Foliage Get Data	Returns the actor's row from the Data Table.
Foliage Get Remaining Uses	Returns the remaining uses.
Foliage Get Reward	Returns Rewards on Harvest from the row.
Reduce Remaining Uses	Reduces the remaining uses. Server only.
Add Remaining Uses	Adds remaining uses. Server only.
Set Remaining Uses	Sets the remaining uses. Server only.

Reduce, Add and Set Remaining Uses can be called from inside your Foliage Actor Blueprint.
