Guides

Multiplayer Harvesting

Foliage only reacts to damage on the server. In multiplayer, the client sends a Server RPC, and the server does the line trace and applies the damage. This works the same on a listen server and a dedicated server, and also in single player.

This guide adds the logic to your Character Blueprint.

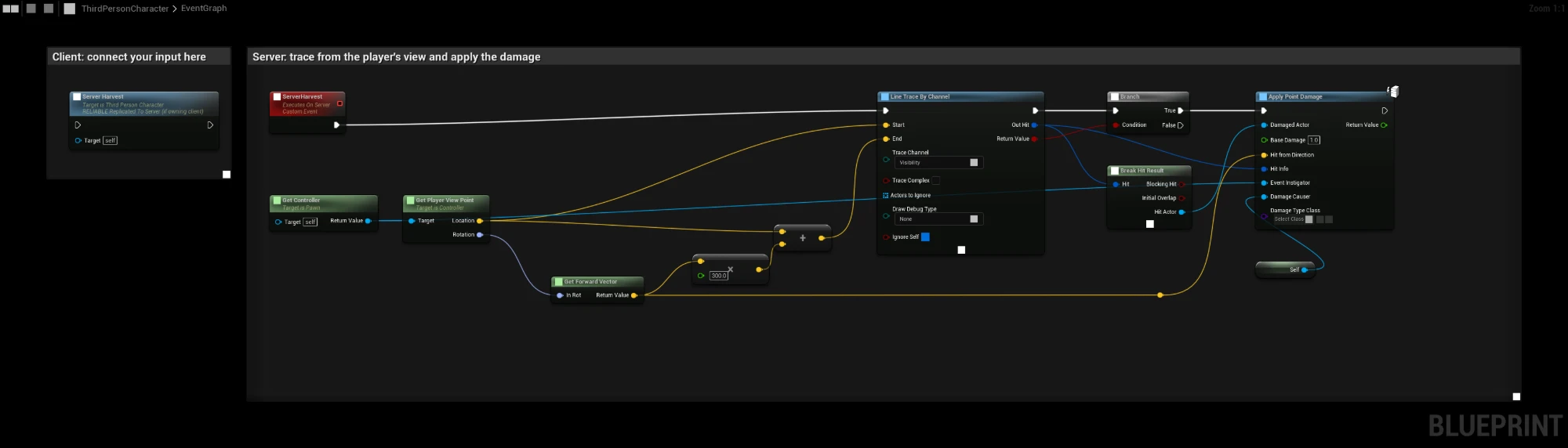

Server RPC with a line trace and Apply Point Damage

Step 1: Create the Server RPC​

Add a Custom Event called Server Harvest. In its details, set Replicates to Run on Server and check Reliable.

When a client calls the event, it runs on the server. When the server calls it, it runs right away.

Step 2: Call it from your input​

Connect your harvest input, for example the attack or interact action, to a call of Server Harvest. Do not send the hit result or the hit actor to the server. The server does its own trace.

Step 3: Trace from the player's view on the server​

From Server Harvest:

  1. Call Get Controller, and on it Get Player View Point. On the server, this is the position and rotation of the player's camera.
  2. Get the Forward Vector of the rotation, multiply it by the reach, for example 300, and add it to the location. This is the end of the trace.
  3. Call Line Trace By Channel from the location to the end.

The trace channel must be blocked by the foliage. See Collision Setup.

Step 4: Apply the damage​

If the trace hit something, call Apply Point Damage:

PinValue
Damaged ActorHit Actor from Break Hit Result.
Base DamageThe damage of the hit.
Hit From DirectionThe forward vector from Step 3.
Hit InfoThe Out Hit of the trace. The plugin uses it to find the instance that was hit.
Event InstigatorThe Controller. It receives the rewards if it implements the Foliage Plugin Interface.
Damage CauserSelf. Also receives the rewards if it implements the interface.
Damage Type ClassThe damage type of the tool, if you use them.

Why not trace on the client?​

  • The plugin only handles damage on the server, so damage applied on a client is ignored.
  • Foliage spawned by PCG at runtime is created separately on each machine. A reference to it cannot be sent to the server, and arrives as none. The log then shows FNetGUIDCache::SupportsObject ... NOT Supported.
  • A server trace also prevents clients from harvesting foliage they cannot reach.

Next steps​

  • Play effects and sounds on all players from the replicated events. See Multiplayer.
  • Require the right tool with Damage Types.
