Harvesting Foliage
Step 1: Implement the Foliage Plugin Interface
When foliage is harvested, the plugin sends the rewards to the Instigator (the Controller passed to the damage node) and to the Damage Causer. Whichever of them implements the Foliage Plugin Interface receives the events.

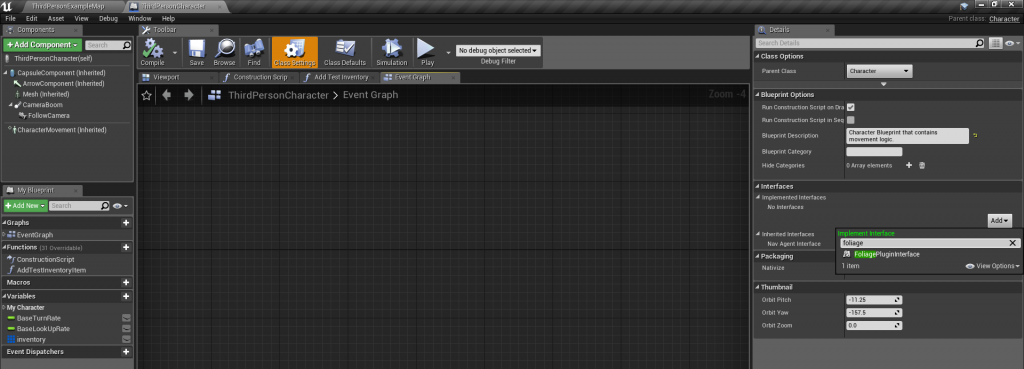

Open your Player Controller, or the Actor you pass as Damage Causer such as your Character, and add Foliage Plugin Interface under Class Settings → Implemented Interfaces.

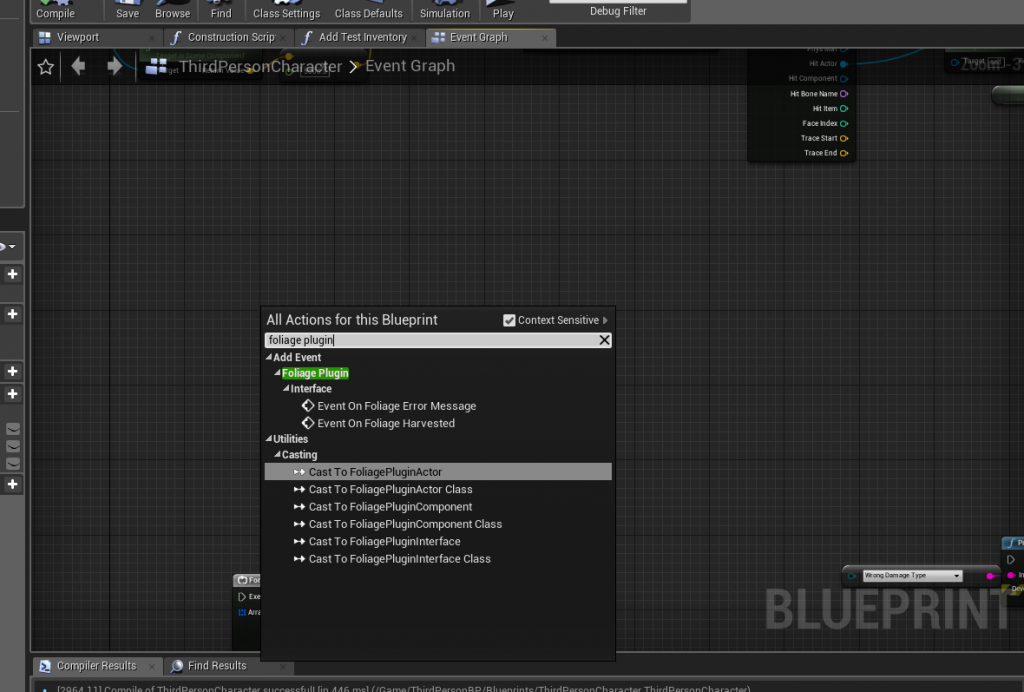

This unlocks two events:
| Event | Called when |
|---|---|
| On Foliage Harvested | The foliage was harvested. Receives the Foliage Actor and its Rewards. |
| On Foliage Error Message | The foliage could not be harvested, for example because the wrong damage type was used. |
See Foliage Plugin Interface for details.

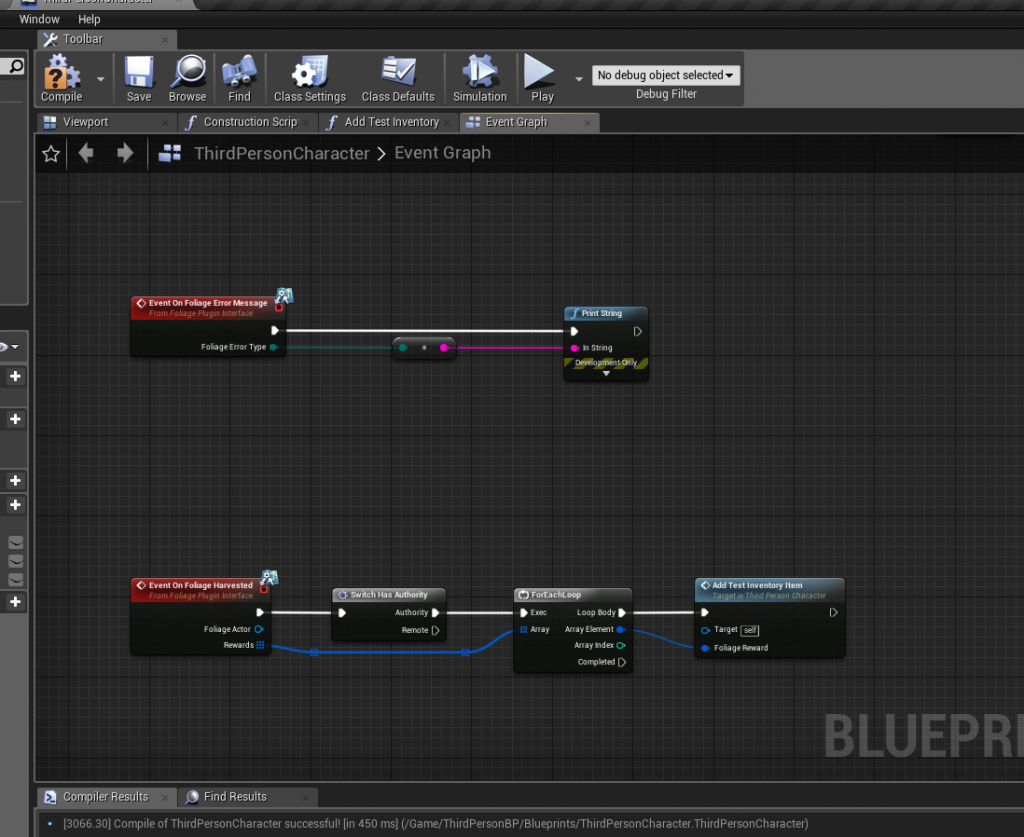

Step 2: Add the rewards to your inventory
Each reward has a Reward Name and a Number of Rewards with a Min and Max value. Pick an amount between Min and Max, for example with Random Integer in Range, and add it to your own inventory system.
The interface events run on the server. Update a replicated inventory from here, and the clients will see the change.
Step 3: Apply damage to the foliage

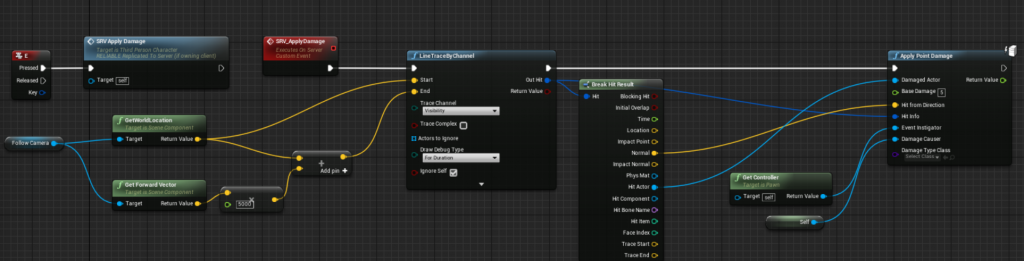

Apply point damage or radial damage to the foliage, on the server. This example does a line trace from the player's view and calls Apply Point Damage on the hit:
The plugin handles the rest. The first hit replaces the instance with your Foliage Actor and applies the same damage to it, so the first hit already counts as a harvest.
Damage applied on a client is ignored. In multiplayer, send a Server RPC from the client and apply the damage there. See Multiplayer.
Next steps
- Read Lifecycle of a Foliage Instance to understand uses, lifetimes and respawning.
- Require tools for harvesting with Damage Types.
- Make trees fall over with Simulating Physics.
